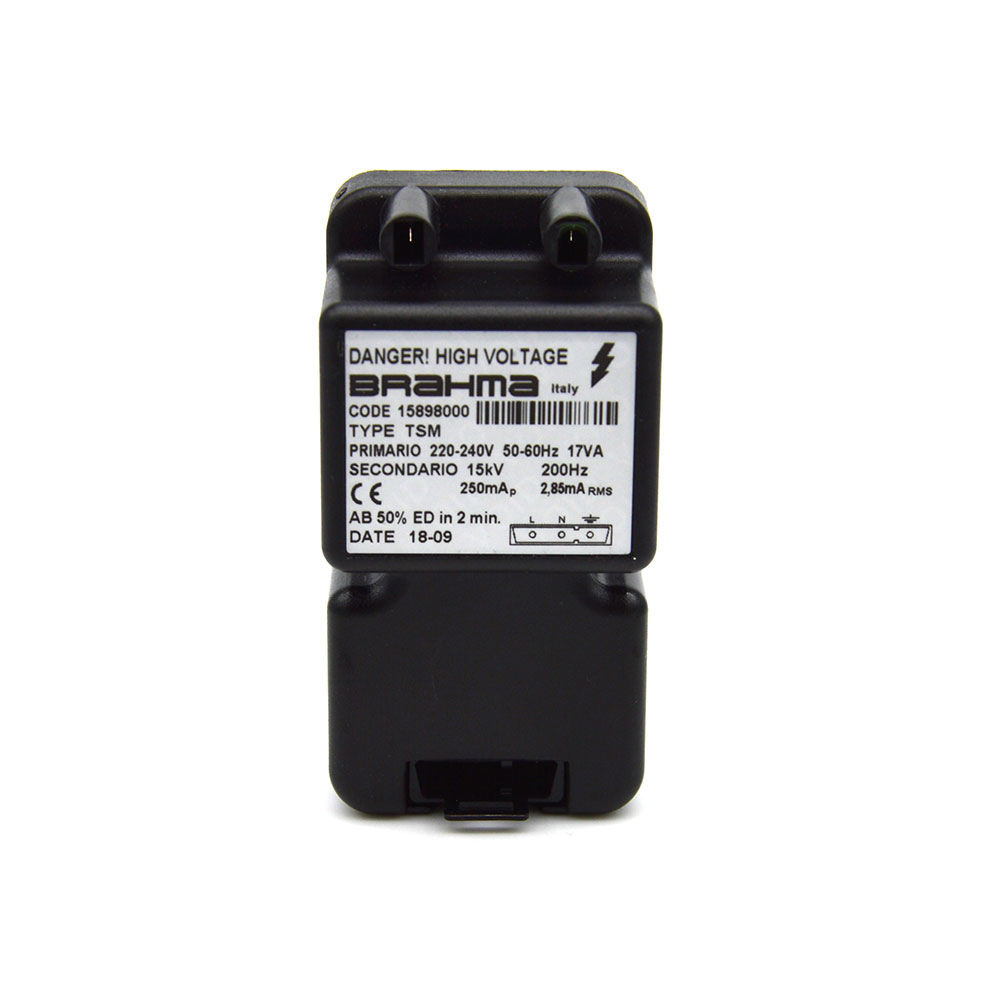

Burner Control Brahma TSM – The capacitive-discharge ignition transformers type TSM are generally used for the ignition of premix gas burners for condensing boilers. Despite their small dimensions, these transformers are provided with a high ignition power, and they also incorporate a filter against conducted interference. The transformers can be fitted to the flame control and safety devices which are provided with an output at a specified mains voltage for the control of the ignition transformer, such as the BRAHMA control boxes type CM32PR, MT11/MT31, MT191/MT391, as well as the microcontroller-based control boxes type DM…PR.
| Supply Voltage | 220-240VAC – 50/60Hz |
| 110-120VAC – 50/60Hz | |
| Operating Themp | -20°C ÷ 60°C |
| Max Wight | 40gr |
