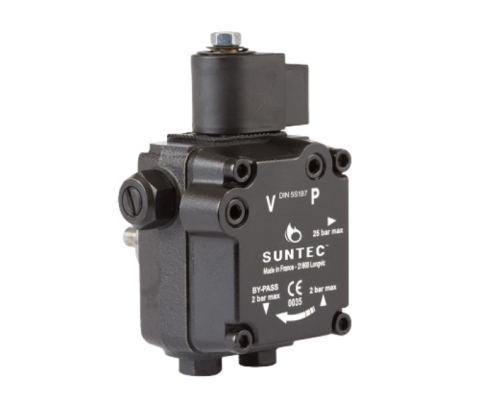

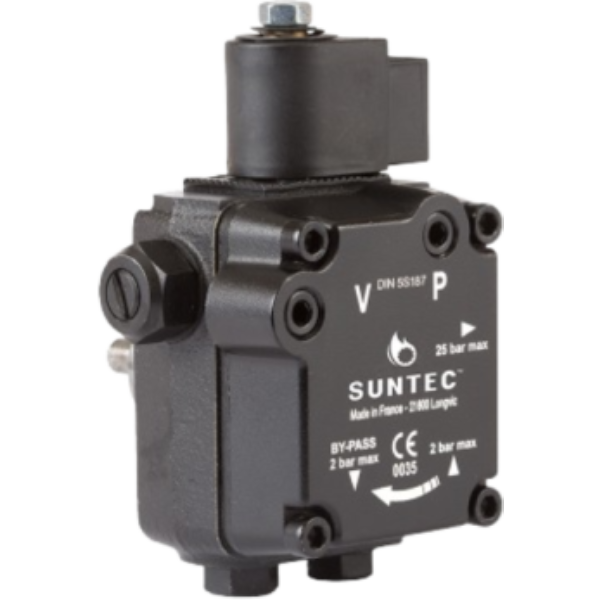

Pump Type AL
The gear set draws oil from the tank through the built-in fi lter and transfers it to the nozzle line via the cut-off solenoid valve. A pressure regulating valve is used to dump all oil which is not required at the nozzle. In two-pipe operation, the by-pass plug must be fi tted in the return port, which ensures that the oil dumped by the regulating valve is returned to the tank and the suction line fl ow is equal to the gear set capacity.
In one-pipe operation, the oil which does not go through the nozzle line is returned directly to the gear inlet and the suction line fl ow is equal to the nozzle flow
- Heavy-duty industrial design
- Stable fuel flow
- Precise output pressure
- Easy maintenance
- High-quality sealing system

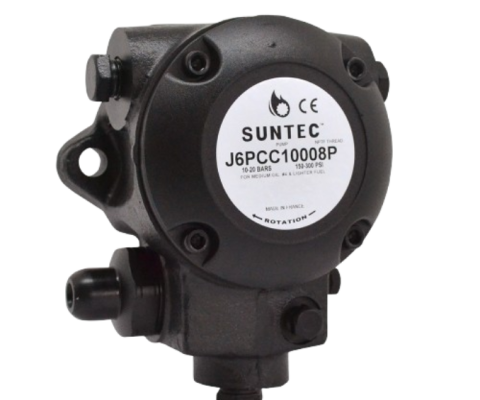

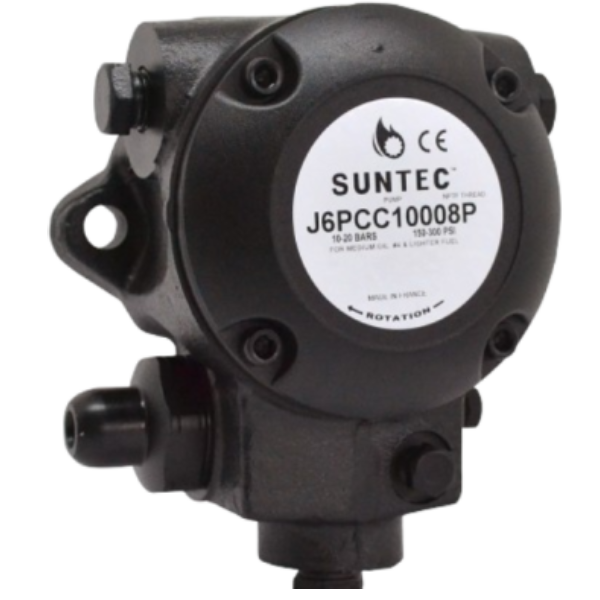

Pump Type J
The SUNTEC J oil pump is for medium capacity oil burners from 400 to 3000kW. It incorporates a pressure regulating valve and is avalaible with or without cut-off function. The gear set draws oil from the tank through the built-in filter and transfers it to the valve that regulates the oil pressure to the nozzle line. All oil that does not go through the nozzle line will be dumped through the valve back to the return line in two pipe installation or, if it is a one-pipe installation, back to the suction port in the gear-set. In that case, the by-pass plug must be removed from the return port and the return port sealed by steel plug and washer
- Robust Industrial Design
- Stable and Accurate Fuel Delivery
- High Pressure Capability
- Precision Output Regulation

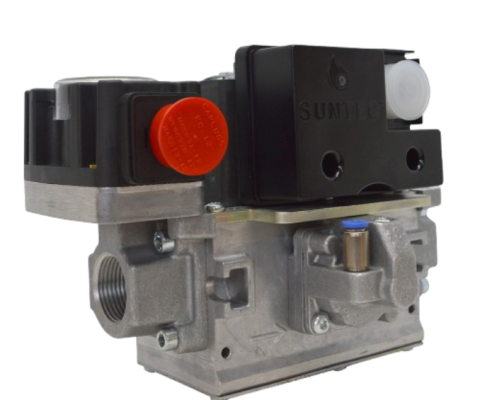

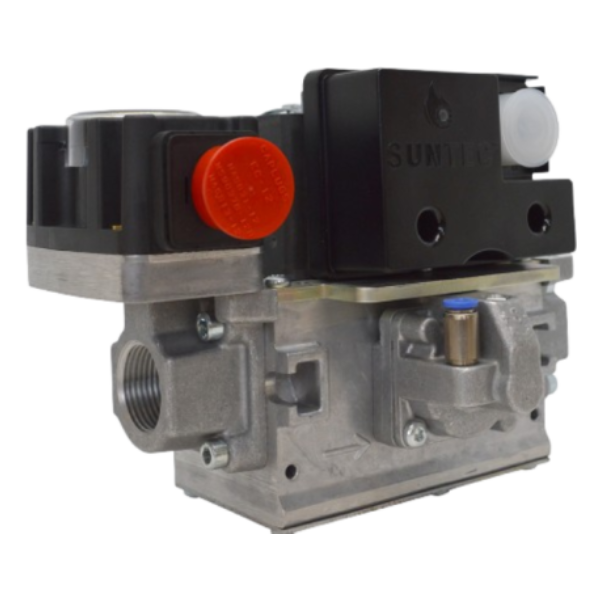

M2C / M3C
The SUNTEC multifunctional gas valves M2C and M3C are design to be adapted on every type of 1-stage gas burner. Made up of 2 class A+A solenoid valves and a high accuracy gas regulator, they allied safety and reliability in every configuration. The multifunctional gas valve M2C / M3C are available in several version to match every gas burner needs, especially the slow opening which be fully compatible with the requirements of the EN 676 standard (forced draught burner with gas)
- Aluminium body high quality
- Customable configuration function of your installation: Rp ¾ or Rp ½ flanges, inlet/outlet pressure plug, gas pressure switch
- High accuracy gas regulator
- Fast close of less than 0,2 seconds when electrical supply is turning off
- Compact and interchangeable models as compared with models of market

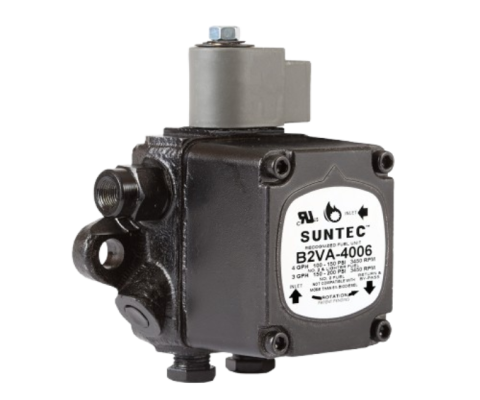

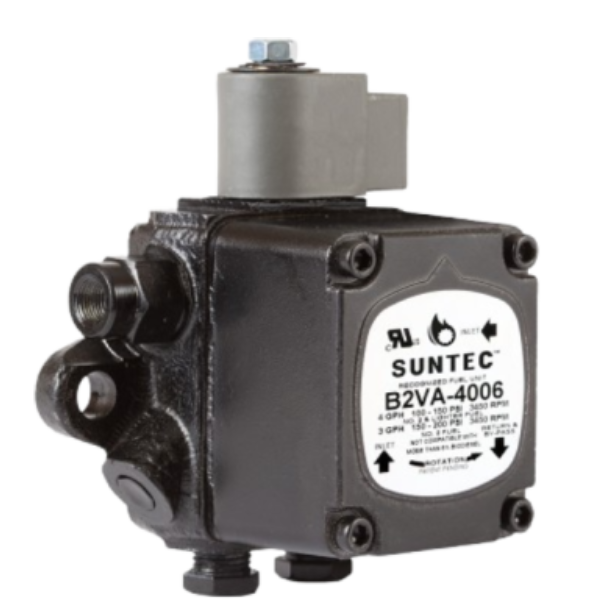

Pump B-4000
SUNTEC B-4000B model contains a high single pipe lift capacity and a unique hydraulic dual safety cut-on/off driven by : – A motor speed dependent device – A solenoid by-passing valve Cut-on is operated when both mechanisms are released. Cut-off occurs when the speed decrease or the solenoid valve is de-energized. The first stage gear set sucks the fuel from the line, and the second stage gear set pressurizes the fuel. This unit is supplied for 1-pipe operation, without by-pass plug installed. Please verify before installation.
- Heavy-duty industrial construction
- Stable and consistent fuel flow
- Low maintenance design
- Wide burner compatibility
