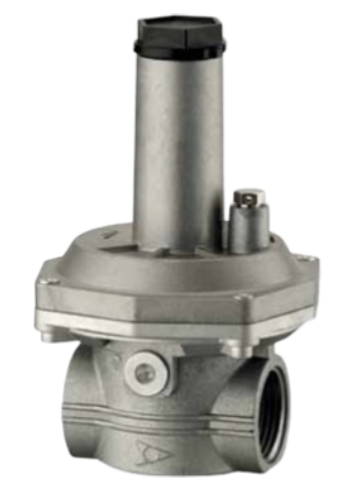

GECA RELIEF VALVE
Industrial Gas Safety Relief Valve for Boiler,Burner & Gas Train Systems
Product Overview
BRAND:GECA
TYPE:Relief Valve RV Series
The GECA Relief Valve is an automatic safety device designed to protect gas systems from overpressure conditions. It releases excess pressure once the system exceeds the predefined set point,ensuring safe operation in industrial combustion systems.
OVERPRESSURE SAFETY DEVICEFunction
- Prevents overpressure in gas systems
- Maintains stable operating pressure
- Protects burners,regulators,and gas trains
- Secondary safety protection layer
Working Principle
- Normal condition → valve remains closed
- Pressure rises → spring compression starts
- Set pressure reached → valve opens automatically
- Pressure drops → valve closes again
Technical Specifications
| Parameter | Specification |
|---|---|
| Maximum Working Pressure | 1 bar |
| Setting Range | 20 – 600 mbar |
| Connection Size | 1/2” – 2” (DN15 – DN50) |
| Flanged Option | DN32 – DN50 (PN10) |
| Body Material | Aluminum Die Cast |
| Seal Material | NBR (Gas Resistant) |
| Temperature | -20°C to+60°C |
| Media | Natural Gas,LPG,Non-corrosive gases |
| Certification | CE 2014/68/EU (PED) |
Key Features
- Fast response overpressure protection
- Compact industrial boiler design
- Easy maintenance
- High durability materials
- Stable set-point accuracy
Applications
- Industrial boiler systems
- Gas burner systems
- Gas train assemblies
- Furnace installations
- Pressure regulating stations
Product Range
- RV 1/2” – 1” Threaded Type
- RV 1 1/4” – 2” Threaded Type
- DN32 – DN50 Flanged Type
