Kunkle Valve
Safety Relief Valve
Kunkle Bailey 756
The 756 Safety Valve is a high-performance safety relief valve designed to protect pressurized systems from overpressure conditions. It is engineered for reliable operation in steam, gas, and liquid applications, ensuring maximum safety and system integrity in industrial environments
Featured :
- Design incorporates an adjustable
blowdown ring. - Meets all the requirements of BS6759 Part 1.
- Freely pivoting disc and precision lapped
stainless steel trim give positive re-seating
for steam duty. - Fitted with a test lever for inline testing as
standard.
Safety Relief Valve

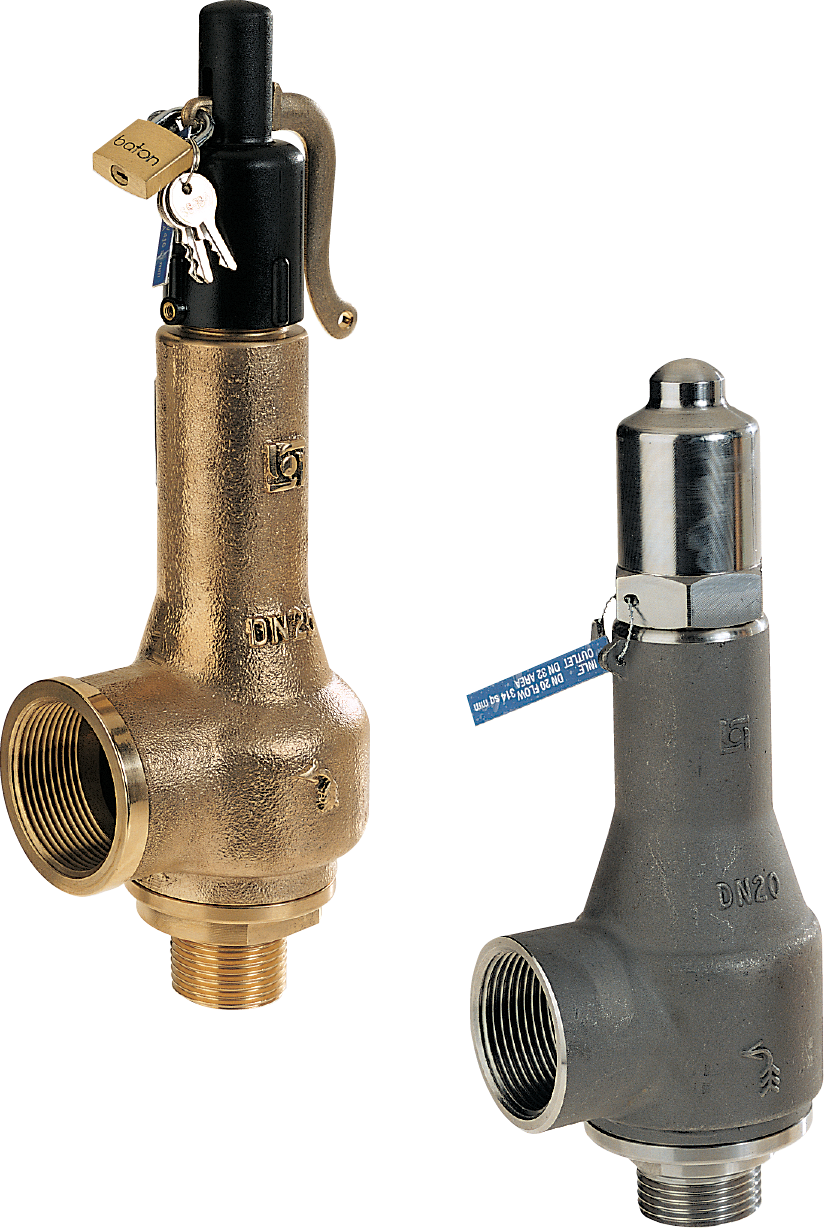

Model 716H
The Model 716H Safety Relief Valve is a high-pressure safety valve engineered to protect pressurized vessels, pipelines, and equipment from overpressure conditions. This valve combines a top-guided design with an unobstructed seat bore and full-lift capability, allowing for maximum discharge efficiency in demanding industrial applications
Featured :
- Positive reseating achieved via freely pivoting EPDM discs for gas and liquid duties up to 150°C.
- Optional Aflas soft seats increase the range to 200°C.
- Precision lapped stainless steel trim gives positive re-seating for steam duty at higher temperatures.
Safety Relief Valve
Bailey 746
xaThe Kunkle Valve Bailey 746 Safety Relief Valve is a high-capacity safety protection device designed to guard pressurized systems against potentially dangerous overpressure conditions. It combines a top-guided design, full-lift capability, and an unobstructed seat bore to deliver one of the highest discharge rates available among industrial safety valves, making it ideal for demanding applications in steam, gas, liquid, and air service systems
Featured :
- Freely pivoting disc ensures correct alignment with the nozzle.
- Highest possible discharge rate maximizes plant protection.
- Special disc style for liquid applications enhances valve performance.
Safety Relief Valve
Bailey 707
The Kunkle Bailey 707 Safety Relief Valve is a versatile and reliable overpressure protection device designed to safeguard pressure systems such as boilers, pipelines, pressure vessels, and industrial equipment. It features a top-guided design with an unobstructed seat bore and high-lift capability, delivering dependable performance and efficient discharge across a wide range of media.
- Choice of resilient or metal trims.
- Choice of threaded or flanged connections.
- Test levers available for inline safety checking.
- Alternative sealed dome for service conditions requiring a pressure tight seal on the discharge side (eg. liquid service with enclosed discharge).
Safety Relief Valve
Bailey 480/485/490
The Kunkle Bailey 480/485/490 Safety Relief Valve is a reliable spring-operated liquid relief valve designed to protect pressurized systems from overpressure conditions, especially in liquid applications and positive displacement pump systems. Available in multiple construction options — bronze (Model 480), bronze with a renewable stainless steel seat and disc (Model 485), and fully stainless steel (Model 490) — this series offers excellent flexibility to suit various industrial environments and media types.
Featured :
- Cartridge type assembly which can be withdrawn from the body without disturbing the spring setting, and hence relieving pressure, allows the seating surfaces to be cleaned without the need to reset the valve.
- 480 is a bronze relief valve.
- 485 is bronze with a renewable stainless steel seat and disc.
