WIKA

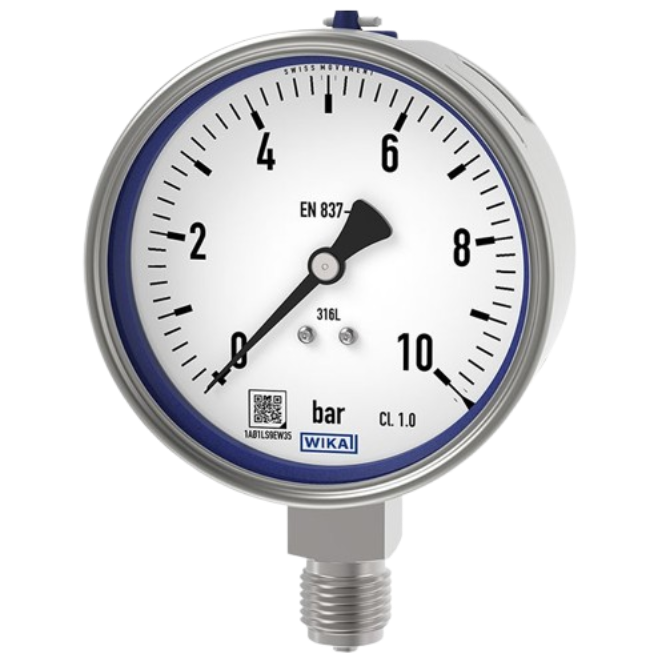

Pressure Gauge (Bourdon Tube)
WIKA Bourdon Tube Pressure Gauges are precision-engineered to German standards for measuring gas and liquid pressures in demanding industrial environments. These highly reliable instruments feature exceptional mechanical strength, heavy-duty corrosion-resistant materials, and consistent accuracy, making them ideal for manufacturing, hydraulics, and severe chemical process systems.
Available Dial Sizes
Technical Specifications
| Product Type | Bourdon Tube Pressure Gauge (Model 213.53 / 232.50) |
| Brand | WIKA (Germany Standard) |
| Dial Size | 63 mm, 100 mm, 160 mm |
| Pressure Range | 0 ... 0.6 bar up to 0 ... 1,000 bar (PSI / kPa scales available) |
| Case Material | Stainless Steel 304 / Brass |
| Connection Type | Lower Mount (Bottom Connection) & Back Mount |
| Thread Connection | G 1/4 B, G 1/2 B, 1/4 NPT, 1/2 NPT |
| Liquid Filling Option | Glycerin / Silicone Oil (Vibration dampening option) |
| Accuracy Class | Class 1.0 / Class 1.6 (Per EN 837-1) |
Key Features & Applications
Hydraulics & Pneumatics
Provides dependable measurements on compressors, oil circuits, pumps, and fluid-power machinery.
Chemical Processing Plants
Heavy-duty, corrosion-resistant stainless steel construction engineered for aggressive gases and liquids.
Power Plants & Steam Systems
Capable of stable operation in high-temperature areas and environments with dynamic pressure loads.
Glycerin Vibration Dampening
Optional liquid filling prevents internal wear caused by fast machine vibrations and high pressure pulsations.
Get the Ultimate Pressure Solutions from WIKA
We supply 100% genuine WIKA Pressure Gauges complete with calibration certificates (optional). Contact our technical sales team today to consult on pressure ranges, thread specs, and fast shipping solutions.
