Italpump IRZ

Italpump Gas Regulator Type IRZ

Italpump IRZ is a high-quality fuel oil pump designed specifically for industrial burner and boiler systems. Built with precision engineering and robust materials, this pump delivers stable and accurate fuel supply essential for efficient combustion. The IRZ series is well-recognized in the industry for its reliability, long service life, and compatibility with a wide range of oil-fired equipment

  • Excellent Sealing and Leak Protection
  • Wide Availability of Spare Parts
  • High Operational Reliability
  • Boiler combustion systems

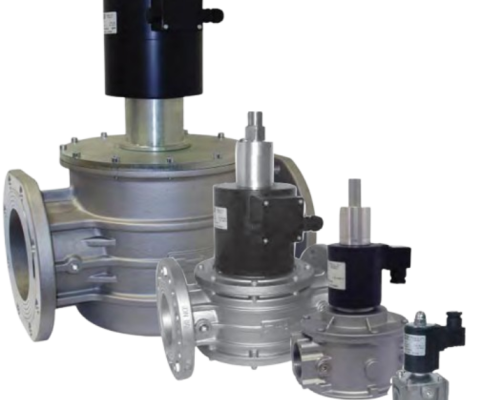

Series IEL1/3/6

Single stage automatic normally closed solenoid valves that open when the coil is energized and close when there is no tension.
Pmax = 1 – 3 – 6 bar
It are equipped with a fl ow regulator and adjustable slow opening kit.

  • EC certifi ed according to EN 161
  • In conformity with the 2009/142/EC Directive (Gas Directive)
  • In conformity with the 94/9/EC Directive (ATEX Directive)
  • In conformity with the 2004/108/EC Directive
    (Electromagnetic Compatibility)
  • In conformity with the 2006/95/EC Directive (Low Voltage)
Italpump Series IEL1
Italpump ITP

Series ITP

Oil suction from the tank is generated by the rotation of the shaft. Sucked oil first reaches the gears, by which it is compressed and sent to the hydraulic valve.
The hydraulic valve opens when oil pressure gets over spring strength settled by pressure adjustment screw and the oil reaches nozzle line.
In two pipe systems the exceeding oil flows into the tank through the return line. On burner stop, the oil pressure immediately comes down and the spring strength, move the piston which stop the fluid flow to the line and at the same time allows the forwarding of the light oil to the return line.
The pump is manufactured with a drilling for the insertion of an heater cartridge to maintain fluid the oil without direct contact. It is very important to avoid damages, especially at the starting of the pump, that the viscosity of the oil is not too high. We suggest to keep on the cartridge during the pump operation.



  • Heavy oil and light oil.
  • Two pipe system and One pipe system.
  • Drilling for heating cartridge.
  • Capacity from 350 l/h to 1380 l/h.
